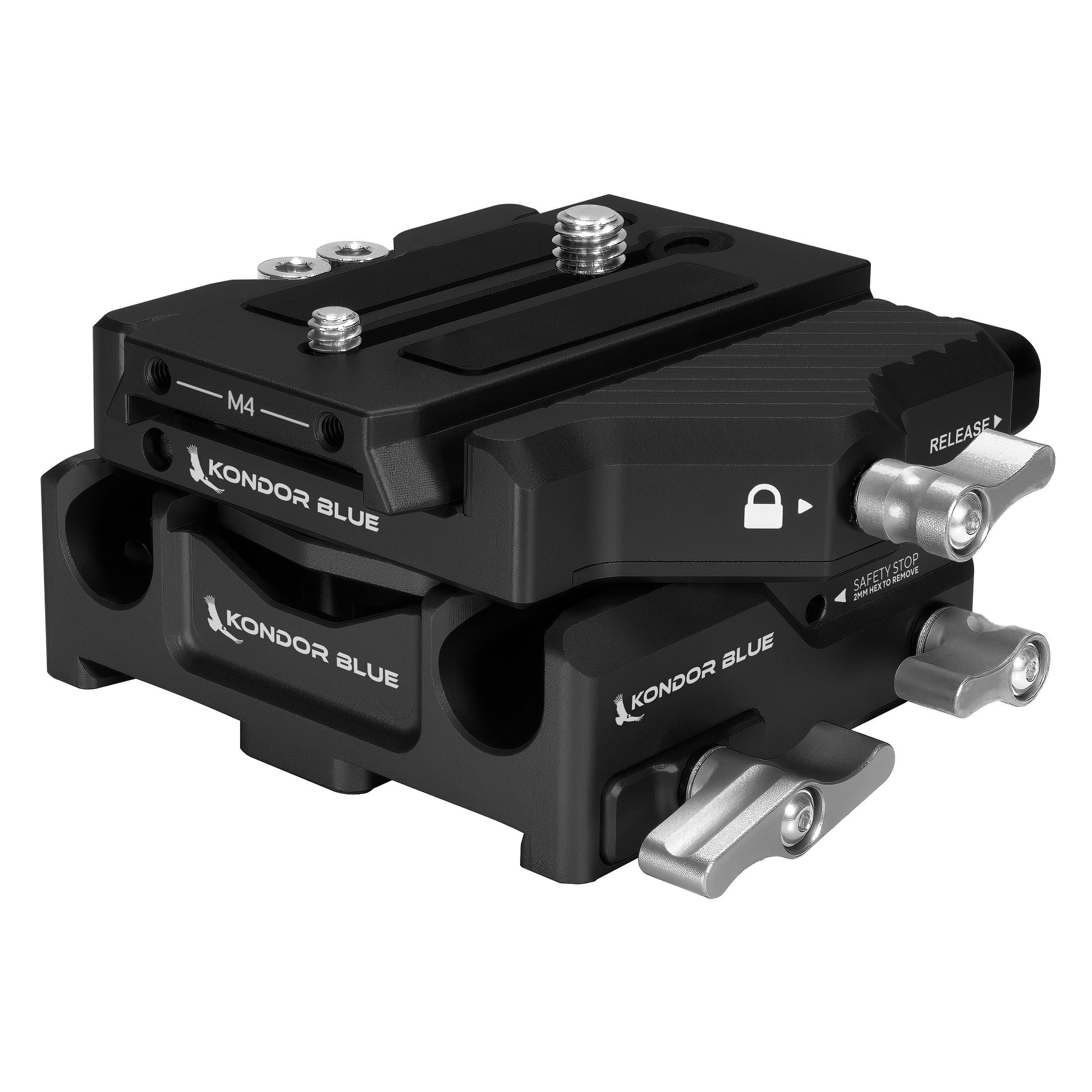

Kondor Blue 501 verstellbare Grundplatte (501 QR) (Raven Black)

Brand: Kondor Blue • MPN: KB-501ABP-Bk • EAN/UPC: 5068650986575

Overview

PRODUCT DESCRIPTION

We took our 501 Baseplate back to the drawing board to give it a complete overhaul to add in some much-needed functionality. At the top of the list was to get as many of our camera cages to 85mm sensor to rail center offset for matte box compatibility. There are many height-adjustable baseplate options, but most start off too tall, mitigating the need for vertical height adjustment. It’s also easy for them to become loose and wobble or slip during a shoot. We addressed this by machining precise 1mm adjustments with corresponding laser engravings to make dialing in the baseplate height easy and accurate. We even have a guide for each cage we offer to let you know the exact position your baseplate should be set to.

We’ve also improved the 15mm rail clamps to have over double the clamping force without marring your rails. The M4 ratchet knobs are also captive and you won’t need to worry about losing them. Whether you’re using the 501 Drop-in Plate or mounting directly to the Baseplate Riser Block, you’ll be able to mount multiple bolts to any camera cage to prevent twisting. Swapping out mounting options is a breeze with slotted access from the underside of the baseplate.

You have options for tripod mounting solutions as well. Mount tripod plates directly to the base with ⅜” and ¼” helicoil mounting holes or use the built-in dovetail clamp which pairs perfectly with our Lightweight Dovetail Plates.

As with all KONDOR BLUE products, long-term usability and functionality were meticulously considered with each cut, curve, and function. We know you’ll enjoy the added flexibility of the all-new KONDOR BLUE Adjustable 501 Baseplate.

Adjustable Baseplate Settings

The chart below serves as a guide for what the ABP should be set at to achieve the proper 85mm spacing for matte boxes and other rod-based accessories.

*Arca plate measurements based on the KB Universal Arca Swiss Plate. The Ronin Gimbal Arca Plate is also compatible with a range of height settings but will require the setting to be -3 lower than the listed measurement (ex. Arca setting: 6mm

Ronin Arca setting: 3).

CAMERA BRAND

CAMERA MODEL

ABP (No QR Plate)

ABP w/ 501 Sideload

ABP w/ Arca QR

ARRI

Alexa Mini

6

Blackmagic

6K Pro

5

Blackmagic

6K G1

6

Blackmagic

6K G2

6

Blackmagic

4k

1

4*

Blackmagic

Ursa

2

Blackmagic

Pyxis

4

Canon

C70

4

Canon

R5

11

Canon

R6

11

Canon

R5C

2

5*

Canon

R7

0

Freefly

Ember

1

4*

Fujifilm

GFX100 II

1

Fujifilm

X-H2S

10

13*

Leica

SL2

13

Nikon

Z8

0

3*

Panasonic

GH6

16

Panasonic

BGH1

21

1

4*

Panasonic

S1/S1R

13

Panasonic

GH5S/GH5 II

1

Panasonic

S5II/S5II X

5

8*

Panasonic

S1RII

5

8*

Panasonic

S1H

11

Panasonic

G9II

5

8*

RED

Komodo/X

0

3*

RED

V-Raptor

9

Sigma

FP

9

12*

Sony

A7s III

14

Sony

FX3 (V1 Cage)

3*

Sony

FX3 (V3 Cage)

1

4*

Sony

A1

Sony

A7R4

14

Sony

FX6

2

Z Cam

E2

0

3*

TECH SPECS

501 QR

493g/17.4 oz

96.5mm W x 74mm L x 49mm T

Height range from rail center: 29mm - 46mm

Arca QR

343g/12.1 oz

86mm W x 84mm L x 46mm T

Height range from rail center: 26mm - 43mm

No QR

249g/8.8 oz

86mm W x 74mm L x 29mm T

Height range from rail center: 9mm - 26mm
